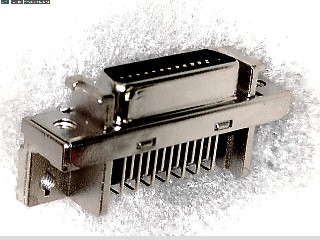

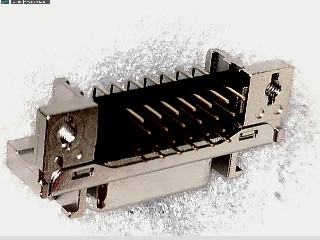

10226-5202PL データシート

Name: 10226-5202PL
Brand: 3M
SKU: 20339772-0000-0000-0000

10226-5202PL - 3M の商品詳細ページです。

２営業日以内に回答いたします

10226-5202PL の詳細情報

型番	10226-5202PL
メーカー	3M
データシート
Board Mounting Option	HOLE .099-.111
Body/Shell Style	RECEPTACLE
Connector Type	TELECOM AND DATACOM CONNECTOR
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	25 mohm
Dielectric Withstanding Voltage	707VAC V
Durability	300 Cycles
Empty Shell	NO
Filter Feature	NO
Insulation Resistance	500000000 ohm
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	M2.6
Mounting Option 2	SCREW
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number of Ports	1
Number of Rows Loaded	2
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Plating Thickness	8u inch
Rated Current (Signal)	0.5 A
Terminal Length	0.154 inch
Terminal Pitch	1.27 mm
Termination Type	SOLDER
Total Number of Contacts	26
