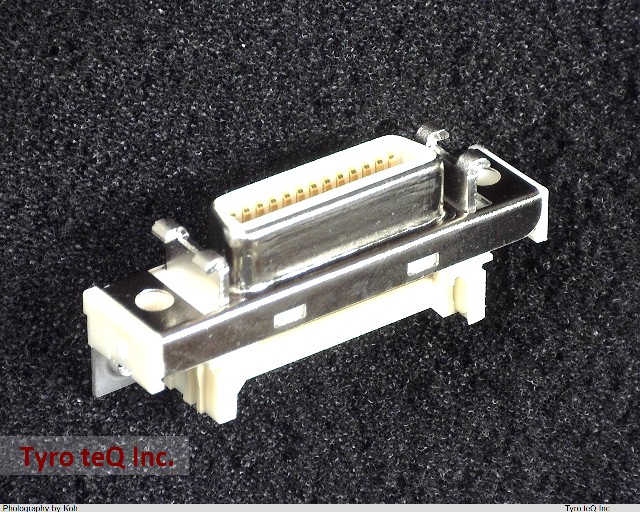

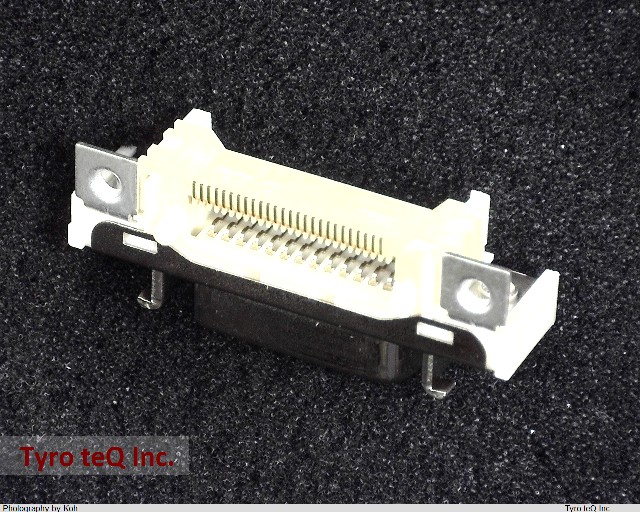

10226-1210PE データシート

Name: 10226-1210PE
Brand: 3M
SKU: 20498744-0000-0000-0000

10226-1210PE - 3M の商品詳細ページです。

２営業日以内に回答いたします

10226-1210PE の詳細情報

型番	10226-1210PE
メーカー	3M
データシート
Additional Feature	3M, SHIELDED
Body Breadth	0.368 inch
Body Depth	0.394 inch
Body Length	1.5 inch
Body/Shell Style	RECEPTACLE
Connector Type	OTHER D TYPE CONNECTOR
Contact Finish - Mating	GOLD (20) OVER NICKEL (80)
Contact Finish - Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	500000000 ohm
Insulator Color	BEIGE
Insulator Material	GLASS FILLED POLYCYCLOHEXYLENE TEREPHTHALLATE
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mixed Contacts	NO
Mounting Option 1	M2.5
Mounting Option 2	THREADED
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	1
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	20u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	GLASS FILLED PCT
Sub Category	D Type Connectors
Terminal Pitch	.635 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	26
UL Flammability Code	94V-0
