10126-3000PE データシート

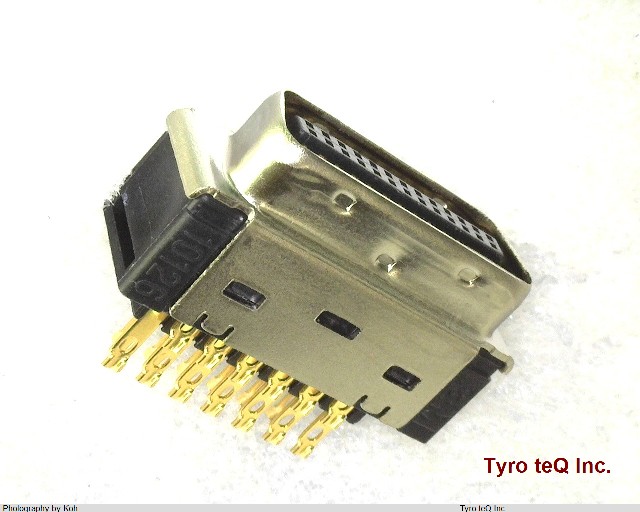

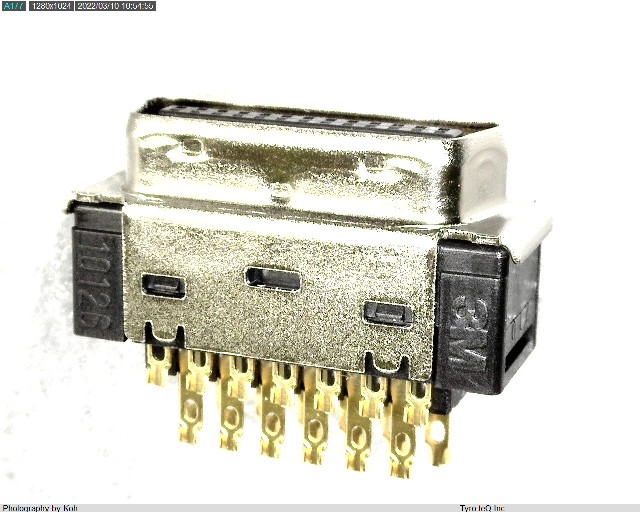

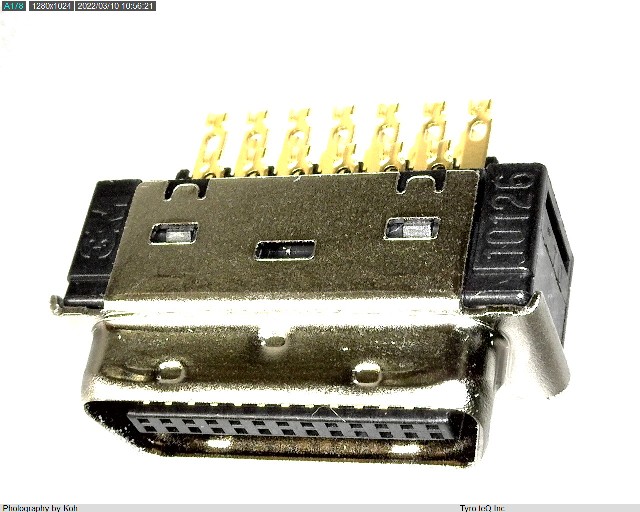

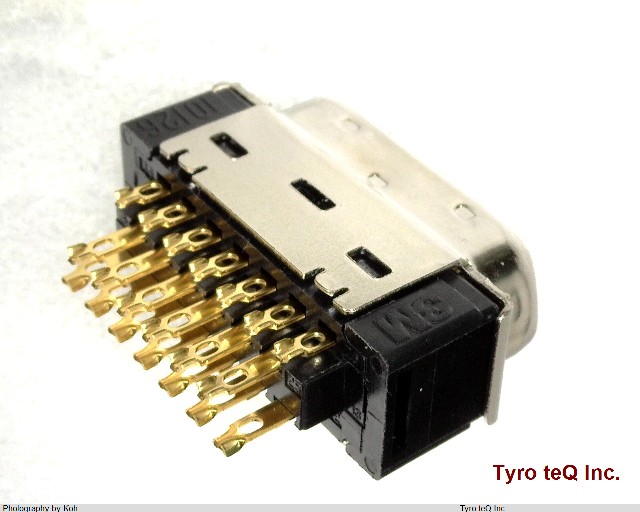

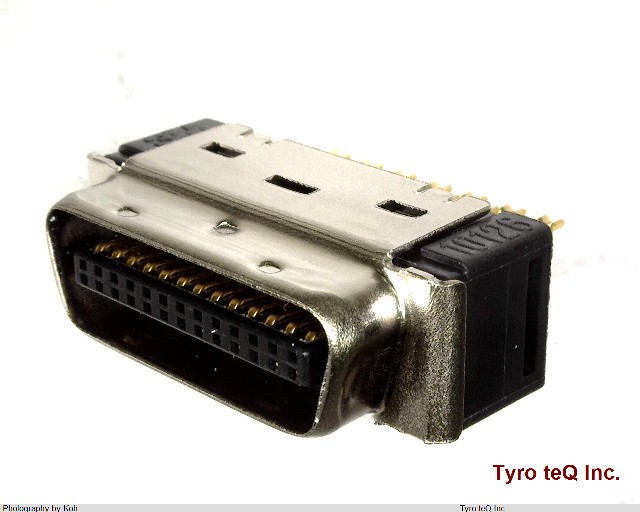

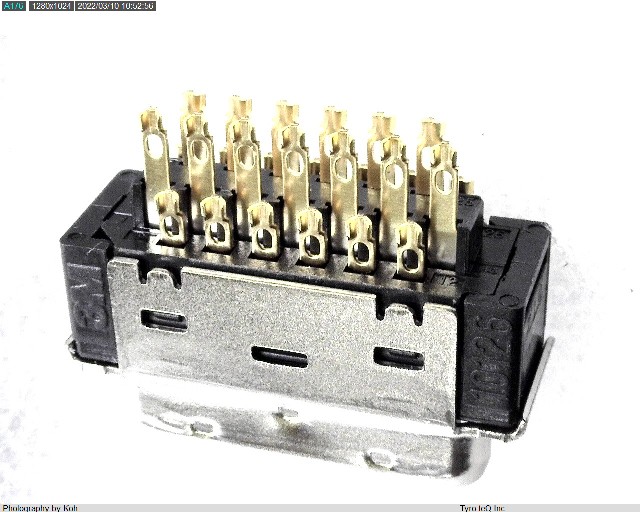

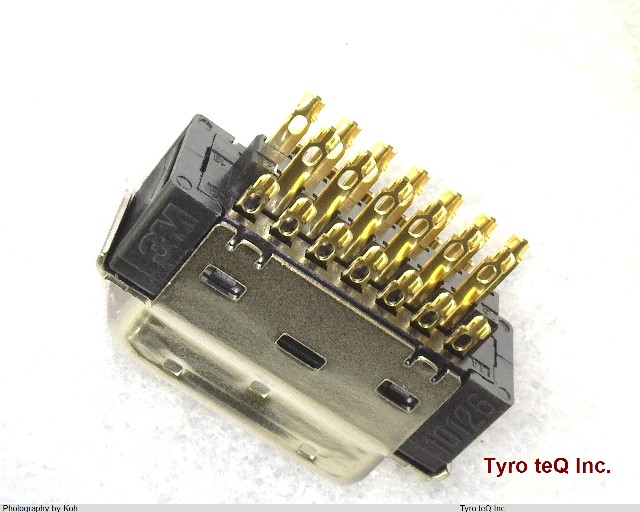

Name: 10126-3000PE
Brand: 3M
SKU: 20023174-0000-0000-0000

10126-3000PE - 3M の商品詳細ページです。

２営業日以内に回答いたします

10126-3000PE の詳細情報

型番	10126-3000PE
メーカー	3M
データシート
Additional Feature	3M, SHROUDED
Body Breadth	0.358 inch
Body Length	1.016 inch
Body/Shell Style	PLUG
Connector Type	OTHER D TYPE CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	GOLD (20) OVER NICKEL (80)
Contact Finish - Termination	GOLD OVER NICKEL
Contact Gender	MALE
Contact Material	COPPER ALLOY
Contact Pattern	RECTANGULAR
DIN Conformance	NO
Dielectric Withstanding Voltage	700VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	100000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYESTER
JESD-609 Code	e4
MIL Conformance	NO
Mating Contact Pitch	0.05 inch
Mating Contact Row Spacing	0.091 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	20u inch
Rated Current (Signal)	1 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Size	2/A
Sub Category	D Type Connectors
Termination Type	SOLDER
Total Number of Contacts	26
UL Flammability Code	94V-0
Wire Size-Max	24 AWG
Wire Size-Min	30 AWG
